Description

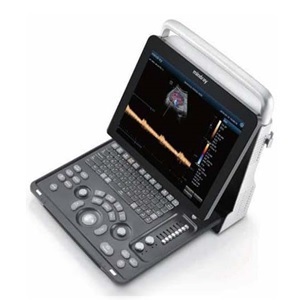

MINDRAY Z60 PORTABLE ULTRASOUND SYSTEM
The Mindray Z60 is a portable shared service ultrasound machine that can be used in various practices and can be applied to adults, pregnant women, and pediatric patient applications such as OB/GYN, 3D/4D, MSK, intra-operative, and small parts. The Point of Care Mindray Z60 for sale comes equipped with innovative software packages and the latest transducer technologies that will provide you with efficient workflow at a great price.
The Z60 delivers ergonomic solutions through its configurations to improve user workflow and diagnostic accuracy to expand your clinical capabilities and meet your evolving professional needs. Probo Medical is a Mindray Authorized Distributor of new DZ60 portable ultrasound machines that are covered with a 3-year warranty.
The Mindray Z60 system features the following key benefits to the ultrasound machinery:
- Dynamic Beam Forming
- iBeam Compound Imaging
- iClear Speckle Reduction Imaging
- 3D/4D Options
- iStation Patient Data Management
- Smart Face
- Smart OB
- iTouch Auto Optimization
- Tissue Harmonic Imaging (PSHI)
- Tissue Specific Imaging (TSI)
- IMT (Intima-Media Thickness)
- 15” full screen LCD
| Active Probe Ports | 2 |
|---|---|
| Battery | Yes |
| CD/DVD-R | External |
| DICOM Options | MPPS, Print, Query/Retrieve, Store, Structured Reports, Worklist |
| Dimensions | 147 x 361 x 358mm, 8.2Kg |
| Ethernet | Yes |
| Export Options | BMP, DICOM, JPG, TIFF |
| Imaging Modes | 2D, 3D/4D |
| Max Cine Memory | 6197 Frames |
| Max Frame Rate (FPS) | 57847 |
| Maximum Depth (cm) | 38.8 |
| Monitor | 15” High Resolution LCD |
| Monitor Resolution | 1024×768 |
| PC Export Formats | AVI, BMP, JPG, TIFF |
| Power (USA) | 100-240V, 50/60 Hz |
| SSD/HDD | HDD |
| Touchscreen | N/A |
| Trackball/Trackpad | Trackball |
| USB Ports | 4 |
| Video and Output Options | Ethernet, S-Video, USB, VGA |
| Probe | Type of Array | |
|---|---|---|
| Mindray 2P2P | Sector | |
| Mindray 6C2P | Convex | |
| Mindray 6CV1P | Endocavity | |
| Mindray 6LE7P | Linear | |
| Mindray 7L4BP | Linear | |
| Mindray 7L5P | Linear | |
| Mindray 7LT4P | Linear | |
| Mindray C6-2P | Convex | |
| Mindray CB10-4P | Convex | |
| Mindray D6-2P | Volume Curved | |
| Mindray L14-6P | Linear | |
| Mindray P7-3P | Sector | |
| Mindray V10-4BP | Convex |
