KM 0903

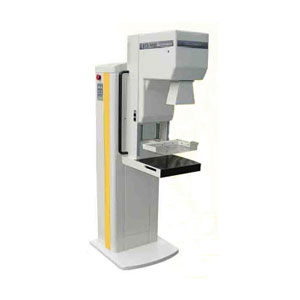

KM 0903 Mammography Unit

Description

Medical Diagnosis of Galactophore X-ray Machine (High-frequency)

X-ray Generator

– Generator Type: High Frequency Inverter 40kHz
– Input Power: Single phase 220VAC, 50/60Hz
– Radiographic Ratings: Large Focal Point 20-35KV/1-300mAs
– Small Focal Point 20-35KV/1-100mAs
– Power Rating: 1.2kW

X-ray Tube

– Model: Fixed anode, China Hang Zhou XD7(X791)
– Focal Spot Size: Dual Focus 0.5mm
– Target Material: Molybdenum (Mo)
– Port Material: Beryllium (Be)
– Anode Heat Storage: 63KHU
– Anode Cooling: Air cooling
– Filtration: Mo(0.03mm), Al(0.5mm)

Radiographic Stand

– C-ARM: Vertical Movement:60cm (70~130cm) Motorized
– Rotations Deg: ?180? Motorized (Deg. Data Display)
– SID: 65cm
– Cassette Image Receptor
– 18_24cm
– Line Voltage
– 220Vac@15A,Single phase
– Weight 200kg
– Bucky: (Optional)
– Bucky Device:18_24cm Bucky drive mechanism
– Grid Ratio:3.5:1 ,30 Line/cm

Comfortable Compression(Optional):

When some degree of pressure is required for radiography, it allows you to presser the appropriate pressure(up to a maximum of 20kg)and is equipped with MICOM Control’s Soft-touch system which is designed to minimize the discomfort of the examine with in the pressure range.

– Tissue Compression: Manual and Motorized (Max 20kg)
– Compression Force and Thickness Data Display
– Micom Control’s Compression
– Automatic Release
– Intelligent Automatic Exposure Control (AEC) (Optional)

With the Automatic Exposure Control system, it is possible to produce images with reliable intensity suitable for and film, screen, or method of radiography. Furthermore, this diagonosis x-ray machine greatly enhances the convenience of radiography by embedding the Full-AEC function which is capable of utilizing the Auto kV.

– Type: Solid-State Detector or PMT Detector
– Microprocessor Control
– AEC Mode: Full AEC(Auto kV)
– Semi AEC (KV Select)
– Manual (kV, mAs Select)
– Density Adjustment: 10 density steps
