Description
Introduction

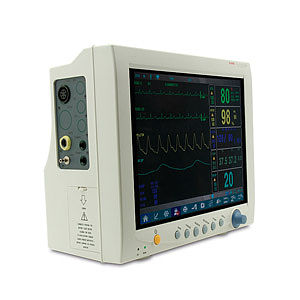

This equipment with touch screen can monitor such parameters as ECG, RESP, SpO2, NIBP, and Dual- channel TEMP. It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.
Main Features
– Elegant appearance, clear marks, standard interface, oxyCRG SCREEN, trend graph, big characters, other BED observation, which are convenient for user.
– Standard parameters of ECG, RESP, NIBP, SpO2 and dual-channel TEMP. IBP, CO2, built-in printer, curving handle, moving bracket and hanging bracket are optional.
– Finish all operations by touch screen or keys and knobs.
– Operation interface with Chinese and English. (Optional languages: French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Poland.) design with full built-in module, stable and reliable performance.
– 12.1” color TFT LCD with high-resolution displays patient parameter and waveform, and alarm, bed NO, clock, state and other information provided by the monitor synchronously.
– Monitoring contents, scan speed, volume and output contents can be set optionally.
– Storage of 480-hour trend data, and review of 40-second holographic waveform.
– Storage and review of 72-hour ECG waveform.
– Function of NIBP review, storage for up to 2400 NIBP data.
– Adopt digital SpO2 technology, which has strong anti-interference and anti-weak filling capability.
– Calculation of drug concentration.
– Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.
– Built-in rechargeable battery for uninterrupted monitoring.
– Print ECG, SpO2, RESP, BP and temperature data with one-key.
