Description

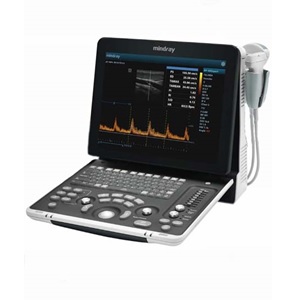

Mindray DP-50 Expert
Mindray DP-50 Expert is an affordable hand-carried portable ultrasound machine with M-Mode, PW and Color Doppler imaging. The budget DP-50 Expert is a very versatile system for its cost, allowing for a wide range of imaging options in a low-cost package. As a Mindray Authorized Distributor, Probo Medical sells new DP-50 Expert portable ultrasound machines with a 3-year warranty.
- iBeam Spatial Compounding
- iClear Speckle Reduction
- Color Doppler
- PW Doppler
- iWorks Protocol
- iTouch Auto Image Optimization
- Tissue Specific Imaging (TSI)
- 15-inch LCD, LED backlight, High-Resolution
- iScape
Specifications
| Active Probe Ports | 2 |
|---|---|
| Battery | Yes |
| CD/DVD-R | External |
| DICOM Options | MPPS, Print, Query/Retrieve, Store, Structured Reports, Worklist |
| Dimensions | 147 x 361 x 358mm, 8.1kg |
| Ethernet | Yes |
| Export Options | BMP, DICOM, JPG, TIFF, USB |
| Imaging Modes | 2D, 3D/4D |
| Max Cine Memory | 118000 |
| Max Frame Rate (FPS) | 8632 |
| Monitor | 15” HD LED |
| Monitor Resolution | 1024×768 |
| PC Export Formats | BMP, JPG, TIFF |
| Power (USA) | 100-120V, 50/60 Hz |
| SSD/HDD | HDD |
| Touchscreen | N/A |
| Trackball/Trackpad | Trackball |
| USB Ports | 4 |
| Video and Output Options | Ethernet, S-Video, USB, VGA |
| Wireless | No |
| Probe | Type of Array | Bandwidth |
|---|---|---|
| Mindray 10L24EA | Linear | |
| Mindray 35C20EA | Convex | |
| Mindray 65C15EA | Microconvex | |
| Mindray 65EB10EA | Convex | |
| Mindray 65EC10EA | Endocavity | |
| Mindray 65EC10ED | Endocavity | |
| Mindray 65EL60EA | Rectal | |
| Mindray 75L38EA | Linear | |
| Mindray 75L53EA | Linear | |
| Mindray 75LT38EA | Intraoperative |
